Scan 700
Image analysis technology for dry applications : particles size, shape
and colour characterisation.
Manual dispersion or using VDD270 (optional).
10µm to several cm
Particle size range for dry analysis on the
glass plate.
High Resolution Camera
Our Scan 700 use a CCD scanner of
20,000 x 20,000 pixels in one shot.
Option Automatic dispersion
Dry particle device dispersions with VDD270 for homogenous dispersions every time.
Developed for small quantity and heterogeneous samples, the Scan 700 uses a CCD scanner to acquire the image.
The main advantage is the ability to analyse large sectional images without any cutting; the maximum resolution is 20,000 x 20,000 pixels in one shot.

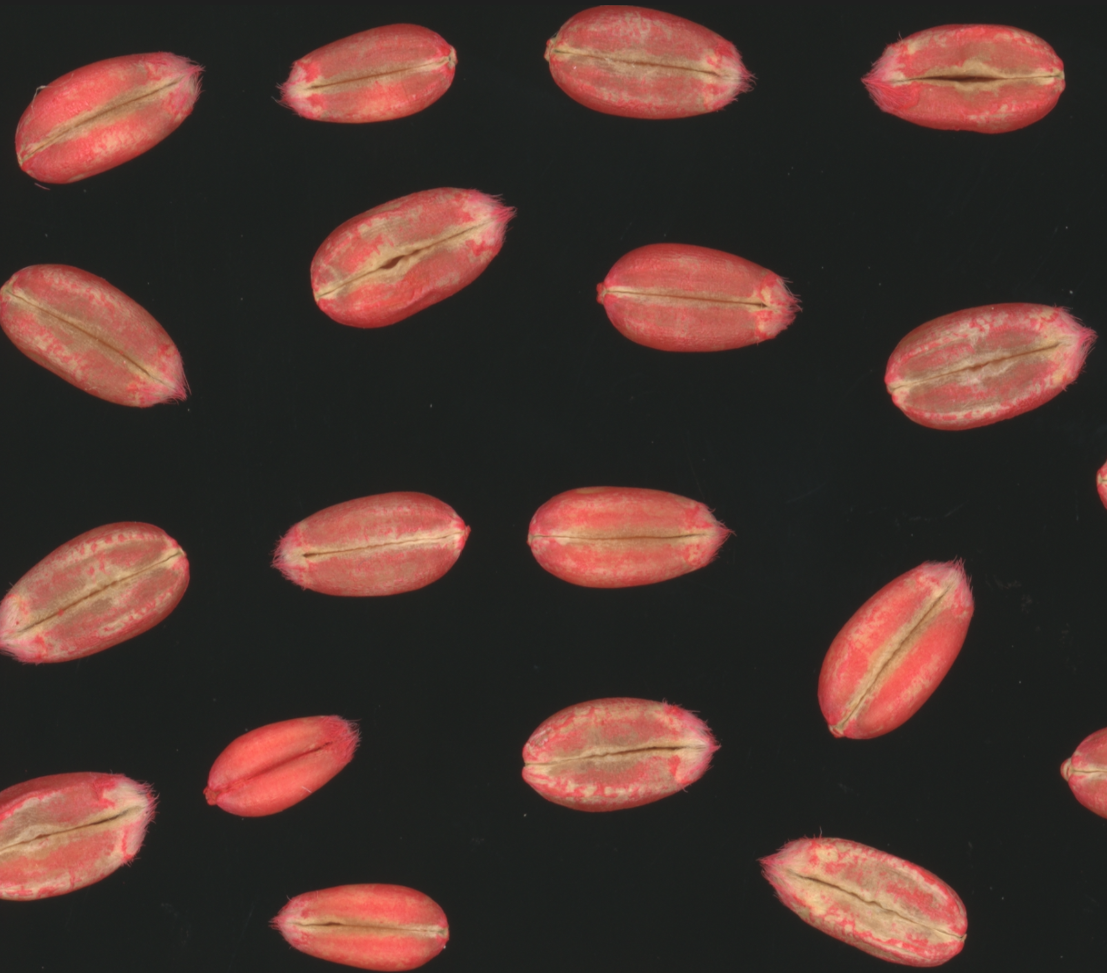

A typical application is for samples that contain various subpopulation, round particles, sized less than 1 mm, mixed with elongated particles to more than a cm length.
The Scan 700 also has the capability to analyse particle colour.
Data and images of each particle are stored in the Occhio binary database.
The system is powered by ARMADILLO software, which controls the entire analysis process, including Standard Operating Procedures (SOP), statistics, reporting, and data storage.
Occhio ZephyrLDA can measure :
- Particle Size
- Particle Shape
- Particle Transparency
- Particle Color
- Dry Particles
| Particle size range | 10µm to 50µm |
| Sensor size | 20000 x 20000 pixels |
| Option | VDD270 : Dry particle dispersion device |
| Glass plate diameter | 200 x 300 mm |
