FC200S + HR

Image analysis technology for liquid applications : particles counting, particles size and shape characterization. Liquid flow controlled by a precision syringe pump.

0.2 µm to 1000 µm

Particle size range for liquid application.

Precise Sample Flow Control

Precision syringe ensures accurate and
reproducible sample flow, minimizing loss
and optimizing measurement reliability.

High Resolution Camera

Image resolution is one of the key aspects of image analysis-based instruments. Our HR option comes with an ultra-high-resolution sensor.

Specially developed for liquid applications the FC200s+HR requires a small sample quantity, just 20 µl.
This instrument is fully computer-controlled by a powerful external PC and monitor which is included in the instrument purchase.
Sample flow is obtained via the integrated precision syringe pump.

As with all the Occhio wet dispersion instruments, the flow cell core is supplied with different spacer thicknesses. The choice of an appropriate spacer reduces the sample dilution and improves the reliability of the measurement.

By choosing higher resolution, 200nm, Occhio FC200S+HR is able to detect submicron particles and deliver you an unrivalled image quality.

Data and images of every single particle are stored in an Occhio binary database.The Occhio database is a proprietary binary storage system that records detailed particle analysis data, including high-resolution images, size, shape, transparency, and concentration. It enables efficient data retrieval, comparison, and reanalysis.

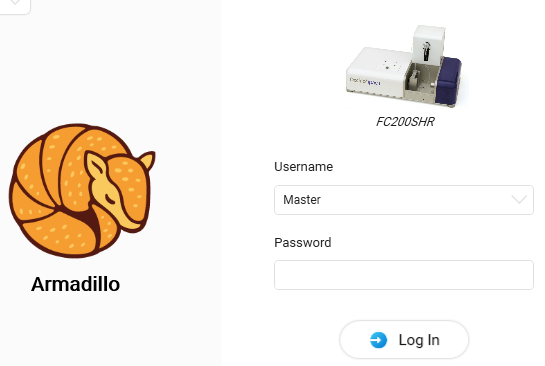

Integrated with Armadillo software, it allows advanced visualization, statistical analysis, and comprehensive reporting. Our software controls the entire analysis process, including SOPs, statistics, reporting, and data storage, ensuring complete and precise management of results.

Occhio FC200S+HR can measure :

Particle Size
Particle Shape
Particle Concentration (particle counting)
Particle transparency

Particle size range	0.2 µm to 1000 µm
Sample Volume	From 0.02ml
Sample Flowing	Precision Syringe
Cell Thickness	Variables thickness
Option	External membrane pump module
